Powering inheritance in C using structure composition

C language does not support inheritance however it does support Structure Compositions which can be tweaked to serve use-cases requiring parent-child relationships. In this article, we find out how Structure Compositions help us emulate inheritance in C and keep our code extensible. We will also find how it powers two of the most important things to have ever been invented in the field of computer science.

What is structure composition?

Structure Composition is when we put one structure within another, not through its pointer but as a native member - something like this

In the example above, we define a node of a linked list using structure composition. Usually, a linked list node has 3 members - two pointers to adjacent nodes (next and previous) and a third one could either be the data or a pointer to it. The defining factor of a linked list is the two pointers that logically form a chain of nodes. To keep things abstract we create a struct named list_head which holds these two pointers next and prev and omits the specifics i.e. data.

Using list_head structure, if we were to define a node of a linked list holding an integer value we could create another struct, named list_int that holds a member of type list_head and an integer value value. The next and previous pointers are brought into this struct through list_head list and could be referred to as list.next and list.prev.

There is a very genuine reason for picking such weird names for a linked list node and members of structures; the reason to do so will be cleared in the later sections of this essay.

Because of the above structure definition, building a linked list node holding of any type becomes a breeze. For example, a node holding string could be quickly defined as a struct list_str having list_head and a char *. This ability to extend list_head and build a node holding data of any type and any specifics make low-level code simple, uniform, and extensible.

Memory Representation of list_int

Structures in C are not padded and they do not even hold any meta information, not even for the member names; hence during allocation, they are allocated the space just enough to hold the actual data.

https://user-images.githubusercontent.com/4745789/83953834-694a6a00-a861-11ea-8ff7-fa69af6af7d6.png

In the illustration above we see how members of list_int are mapped on the allocated space - required by its individual members. It is allocated a contiguous space of 12 bytes - 4 bytes for each of the two pointers and another 4 bytes for the integer value. The contiguity of space allocation and order of members during allocation could be verified by printing out their addresses as shown below.

We clearly see all the 3 members, occupying 12 bytes contiguous memory segments in order of their definition within the struct.

The above code was executed on a machine where the size of integer and pointers were 4 bytes each. The results might differ depending on the machine and CPU architecture.

Casting pointers pointing to struct

In C language, when a pointer to a struct is cast to a pointer to another struct, the engine maps the individual members of a target struct type, depending on their order and offsets, on to the slice of memory of the source struct instance.

When we cast list_int * into list_head *, the engine maps the space required by target type i.e. list_head on space occupied by list_int. This means it maps the 8 bytes required by list_head on the first 8 bytes occupied by list_int instance. Going by the memory representation discussed above, we find that the first 8 bytes of list_int are in fact list_head, and hence casting list_int * to list_head * is effectively just referencing the list_head member of list_int through a new variable.

https://user-images.githubusercontent.com/4745789/83943610-2e254800-a81b-11ea-8b25-056e1b1df85e.png

This effectively builds a parent-child relationship between the two structs where we can safely typecast a child list_int to its parent list_head.

It is important to note here that the parent-child relationship is established only because the first member of list_int is of type list_head. it would not have worked if we change the order of members in list_int.

How does this drive inheritance?

As established above, by putting one struct within another as its first element we are effectively creating a parent-child relationship between the two. Since this gives us an ability to safely typecast child to its parent we can define functions that accept a pointer to parent struct as an argument and perform operations that do not really require to deal with specifics. This allows us to NOT rewrite the functional logic for every child extensions and thus avoid redundant code.

From the context we have set up, say we want to write a function that adds a node between the two in a linked list. The core logic to perform this operation does not really need to deal with any specifics all it takes is a few pointer manipulations of next and prev. Hence, we could just define the function accepting arguments of type list_head * and write the function as

Since we can safely typecase list_int * and list_str * to list_head * we can pass any of the specific implementations the function __list_add and it would still add the node between the other two seamlessly.

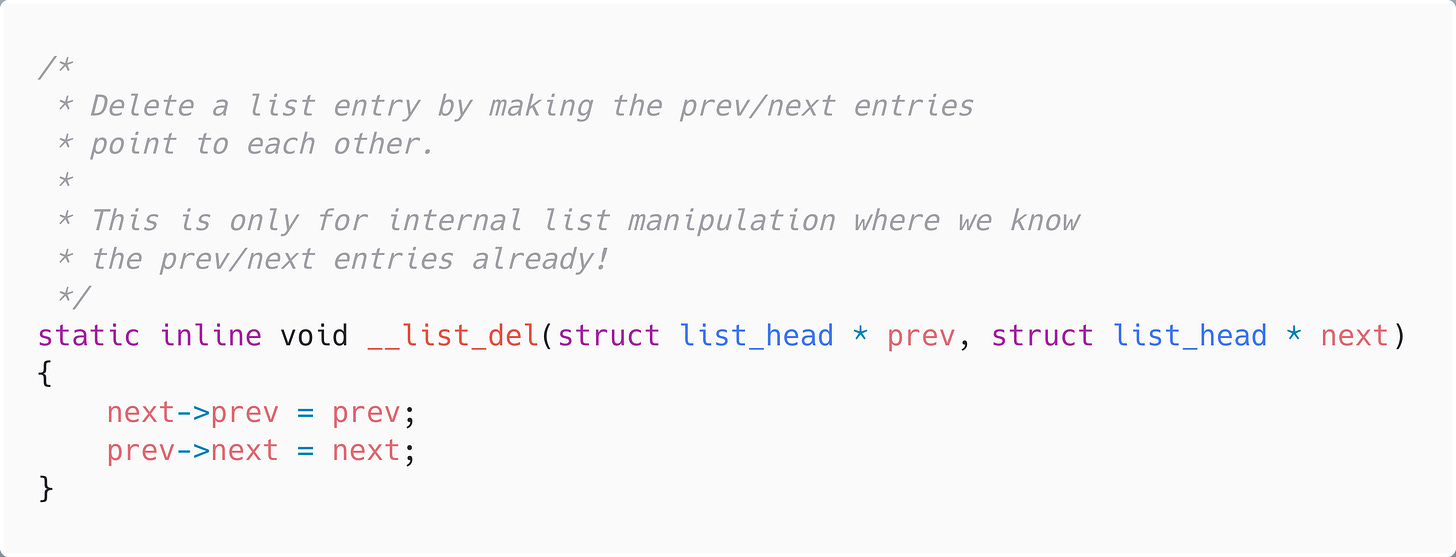

Since the core operations on linked lists only require pointer manipulations, we can define these operations as functions accepting list_head * instead of specific types like list_int *. Thus we need not write similar functions for specifics. A function to delete a node could be written as

Other linked list utilities like adding a node to tail, swapping nodes, splicing the list, rotating the list, etc only require manipulations of next and prev pointers. Hence they could also be written in a very similar way i.e accepting list_head * and thus eliminating the need to reimplement function logic for every single child implementation.

This behavior is very similar to how inheritance in modern OOP languages, like Python and Java, work where the child is allowed to invoke any parent function.

Who uses structure compositions?

There are a ton of practical usage of using Structure Compositions but the most famous ones are

Linux Kernel

In order to keep things abstract and extensible, Linux Kernel uses Structure Composition at several places. One of the most important places where it uses composition is for managing and maintaining Linked Lists, exactly how we saw things above. The struct definitions and code snippets are taken as-is from the Kernel's source code, and hence the structure and variable names look different than usual.

Python Type and Object Hierarchy

Python, one of the most important languages in today's world, uses Structure Composition to build Type Hierarchy. Python defines a root structure called PyObject which holds reference count, defining the number of places from which the object is referenced - and object type - determining the type of the object i.e. int, str, list, dict, etc.

Since Python wants these fields to be present in every single object that is created during runtime, it uses structure composition to ensure that objects like integers, floats, string, etc put PyObject as their first element and thus establishing a parent-child relationship. A Float object in Python is defined as

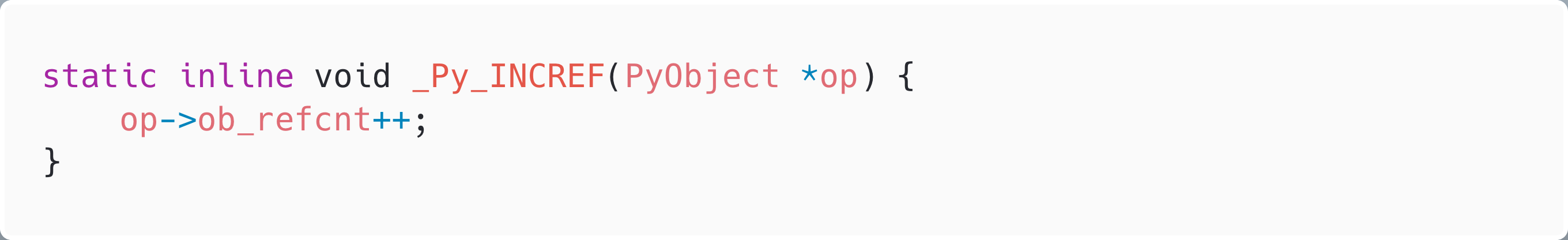

Now writing utility functions that increments and decrements references count on every access of any object could be written as just a single function accepting PyObject * as shown below

Thus we eradicate a need of rewriting INCREF for every single object type and just write it once for PyObject and it will work for every single Python object type that is extended through PyObject.
