Encryption is a process of encoding messages such that it can only be read and understood by the intended parties. The process of extracting the original message from an encrypted one is called Decryption. Encryption usually scrambles the original message using a key, called the encryption key, that the involved parties agree on.
In the previous essay, we went through the Single-byte XOR cipher and found a way to decipher it without having any knowledge of the encryption key. In this essay, we find how to break a Repeating-key XOR cipher with variable key length. The problem statement, defined above, is based on Cryptopals Set 1 Challenge 6.
Repeating-key XOR Cipher
The Repeating-key XOR cipher algorithm works with an encryption key with no constraint on its length, which makes it much stronger than a Single-byte XOR Cipher, where the encryption key length was restricted to a single byte.

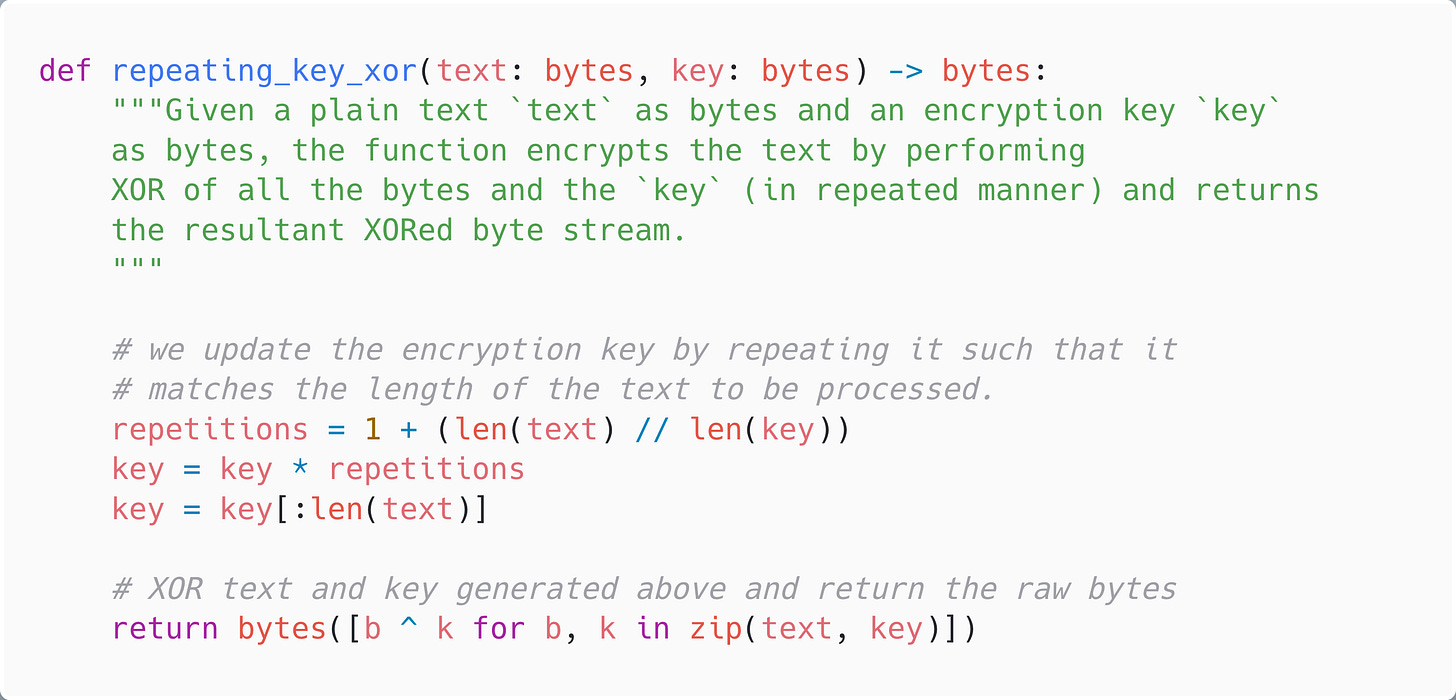

A plain text is encrypted using an encryption key by performing a bitwise XOR operation on every character. The encryption key is repeated until it XORs every single character of the plain text and the resultant stream of bytes is again translated back as characters and sent to the other party. These encrypted bytes need not be among the usual printable characters and should ideally be interpreted as a stream of bytes. Following is the python-based implementation of this encryption process.
As an example, we encrypt the plain text -
secretattack - with encryption key

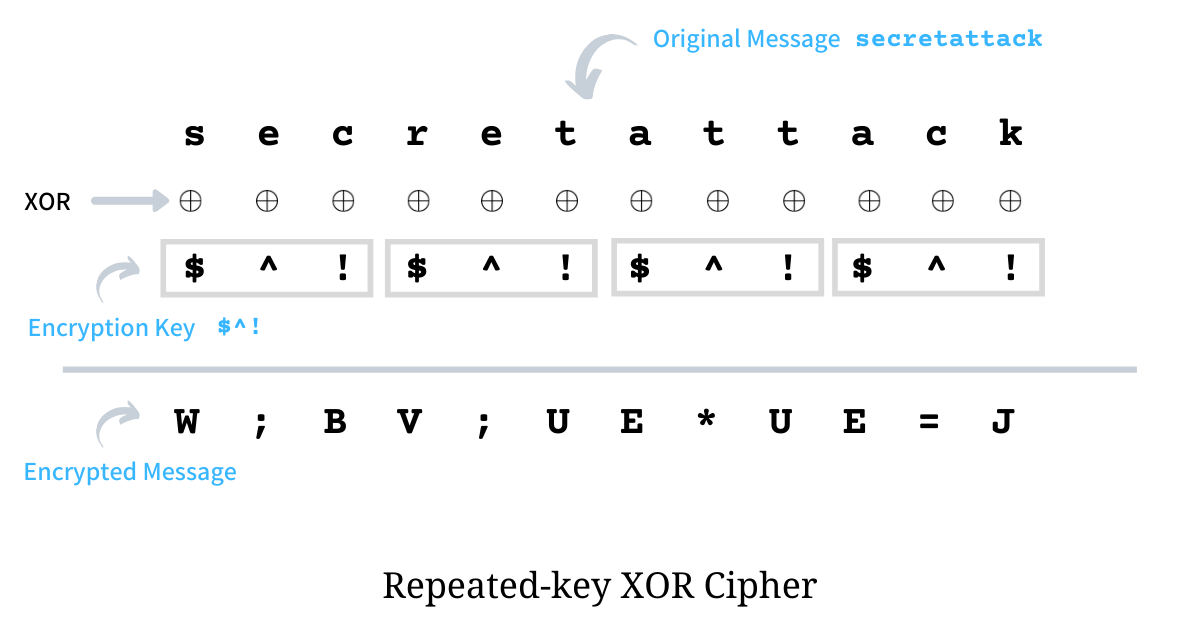

$^! and as per the algorithm, we first repeat the encryption key until it matches the length of the plain text and then XOR it against the plain text. The illustration below shows the entire encryption process.
For the first character in plain text -
s - the byte i.e. ASCII value is
115 which when XORed with
$ results in
87 whose character equivalent is
W, similarly for the second character
e the encrypted byte is
c it is
B, for the fourth character
r, since the key repeats, the XOR is taken with
$ to get
V and the process continues. The resultant encrypted text using repeated-key XOR on the plain text
secretattack with key
Decryption is a process of extracting the original message from the encrypted ciphertext given the encryption key. XOR has a property - if
a = b ^ c then
b = a ^ c, hence the decryption process is exactly the same as the encryption i.e. we first repeat the encryption key till it matches the length and then perform bitwise XOR with the ciphertext - the resultant bytes stream will be the original message.

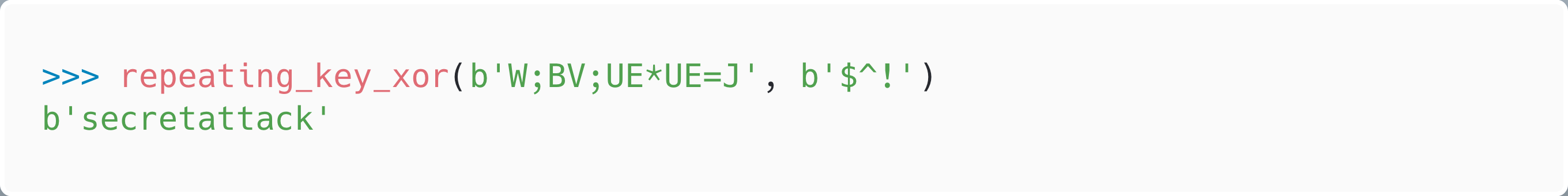

Since encryption and decryption both have an exact same implementation - we pass the ciphertext to the function
repeating_key_xor, defined above, to get the original message back.
Deciphering without the encryption key
Things become really interesting when, given the encryption algorithm, we have to recover the original message from the ciphertext with no knowledge of the encryption key. Just like solving any other problem, the crux of deciphering the message encrypted using repeated-key XOR cipher is to break it down into manageable sub-problems and tackle them independently. We break this deciphering problem into the following two sub-problems:
Finding the length of the Encryption Key
Bruteforce with all possible keys and finding the "most English" plain text
Finding the length of the Encryption Key
In order to recover the original text from the cipher, we first find the length of the encryption key used and then apply brute force with all possible keys of the estimated length and deduce the plain text. Finding the length of the Encryption key makes the deciphering process quicker as it eliminates a lot of false keys and thus reducing the overall effort required during the brute force. In order to find the length of the Encryption Key, we need to have a better understanding of a seemingly unrelated topic - Hamming Distance.
Hamming distance between two bytes is the number of positions at which the corresponding bits differ. For a stream of bytes, of equal lengths, it is the sum of Hamming Distances between the corresponding bytes. Finding differences between bits can be efficiently done using bitwise XOR operation as the operation yields
0 when both the bits are the same and
1 when they differ. So for computing Hamming Distance between two bytes we XOR the bytes and count the number of
1 in its binary representation.
In the example above, we find that the hamming distance between two bytestreams
4, which implies that the byte streams
zb differ at
4 different bits in their binary representations.
Hamming distance is an absolute measure, hence in order to compare hamming distance across byte streams of varying lengths, it has to be normalized with the number of pairs of bits compared. We name this measure - Hamming Score - which thus is defined as the Hamming Distance per unit bit-pair. In python, Hamming Score is implemented as:
What can we infer through Hamming Distance?
Hamming Distance is an interesting measure; it effectively tells us the minimum number of bit flips required to convert one bytestream into another. It also implies that (on average) if the numerical values of two bytestreams are closer then their Hamming Distance and Hamming Score will be lower i.e it would take fewer bit flips to convert one into another.
This is evident from the fact that the average Hamming distance between any two bytes
[0-256) picked at random is
3.9999 while that of any two lowercased English characters
[97, 122] is just
2.45. Similar ratios are observed for Hamming Score where
0.4999 is of the former while
0.3072 is of the later.
This inference comes in handy when we want to find out the length of Encryption Key in Repeating-key XOR Cipher as illustrated in the section below.

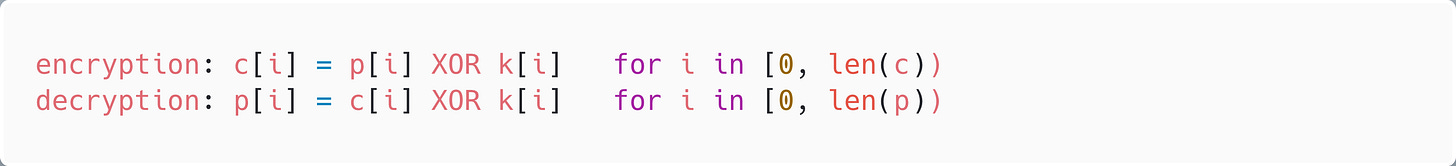

Formal definition of encryption and decryption processes
p denotes the plaintext,
k denotes the encryption key which is repeated to match the length of the plain text, and
c denotes the ciphertext, we could define encryption and decryption processes as

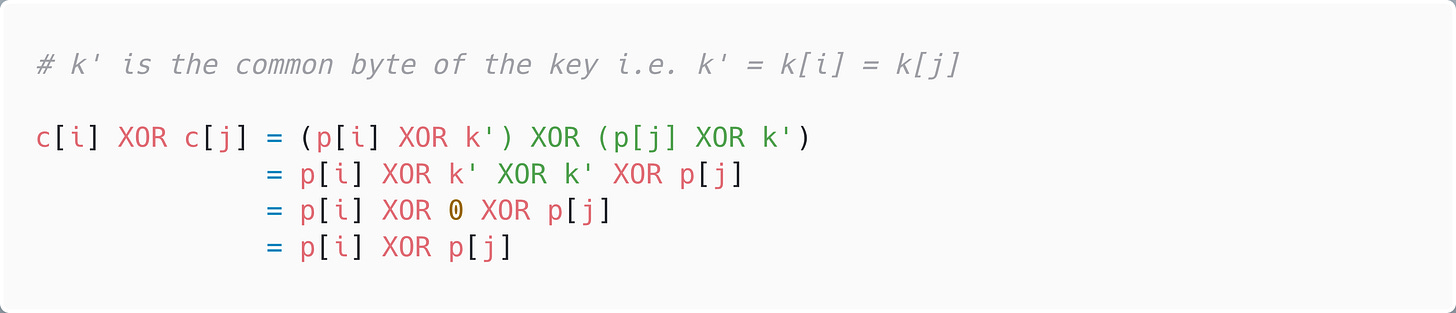

The above definitions, along with the rules of XOR operations, implying that if we XOR two bytes of the ciphertext, encrypted (XORed) using the same byte of the encryption key, we are effectively XORing the corresponding bytes of the plain text. If
k' is the byte of the encryption key
k which was used to encrypt (XOR) the bytes
p[j] of the plain text to generate
c[j] of the ciphertext, we could derive the following relation
The above relation,
c[i] XOR c[j] equal to
p[i] XOR p[j], holds true only because both the bytes were XORed with the same byte
k' of the encryption key; which in fact helped reduce the expression. If the byte from the encryption key which was used to XOR the pain texts were different then the relation was irreducible and we could not have possibly setup this relation.
Chunking of ciphertext

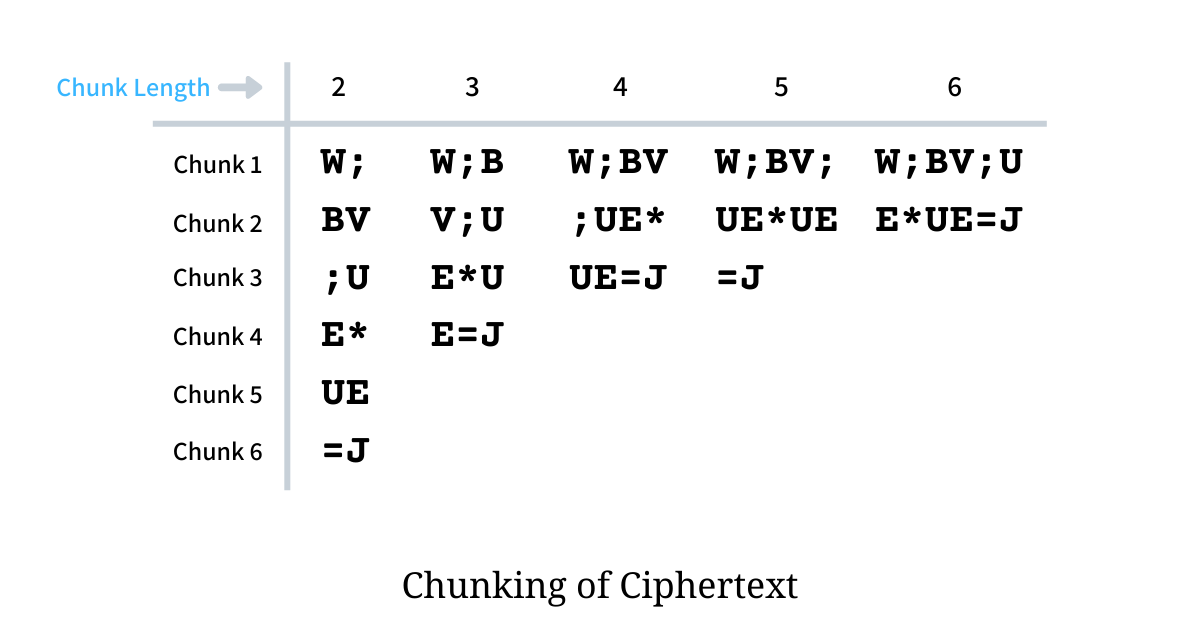

Chunking is the process where the ciphertext is split into smaller chunks (segments) of almost equal lengths. For example, chunking the ciphertext
W;BV;UE*UE=J for chunk length
4 would create
UE=J. The illustration below shows the chunks that would be formed for
W;BV;UE*UE=J with chunks lengths varying from 2 to 6.
XOR of the chunks

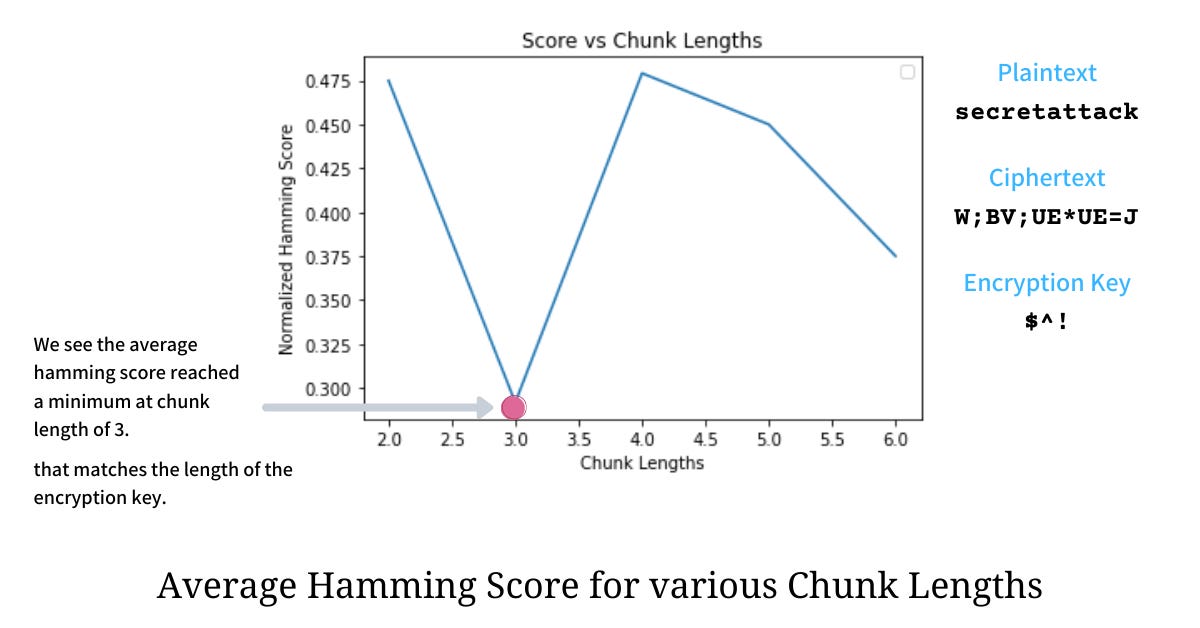

Something very interesting happens when we compute the Average Hamming Score for all possible chunk lengths. If we consider the ciphertext
b'W;BV;UE*UE=J and we chunk it with lengths varying from 2 to 6, we get the following distribution for the Average Hamming Score for each of the chunk length.
From the distribution above it is evident that the score was minimum at chunk length equalling
3, which actually was the length of the Encryption Key used on the plain text. Is this mere coincidence or are we onto something?
When chunk length is equal to the length of the encryption key, the XOR operation on any two chunks will reduce the expression to XOR of the corresponding plain texts (as seen above), because there will be a perfect alignment of bytes from ciphertext and bytes from the keys i.e every
ith byte from both the chunks would have been XORed with
ith byte from the encryption key.
We have established that for chunk length equal to the length of the encryption key
c[i] XOR c[j] is effectively
p[i] XOR p[j]. Since we have assumed that the plain text is a lowercased English sentence the XOR is happening between bytes residing numerically closer to each other and hence has a lower Average Hamming Score between them; because of which we see a minimum at this particular chunk length. The Hamming Score will be much higher for lengths other than the length of Encryption Key because during XOR operation the expression stays irreducible and hence hamming distance is computed panning the entire range of bytes
Something far more interesting
This minimum does not only hold true for chunk length equal to the length of the encryption key, but it also holds true when the length of the chunk is a multiple of the length of the encryption key. This happens because for repeated keys when the chunk length is a multiple of Encryption Key there will be a perfect alignment of bytes such that every
ith byte of chunks is XORed with
ith byte of the encryption key; which sets up the relation
c[i] XOR c[j] equalling
p[i] XOR p[j].
The above distribution shows a lot of sharp drops of Average Hamming Score for chunk lengths that are multiples of
7 - the length of the encryption key used.
Computing Encryption Key Length
Now that we understand the theory and concept behind the process of finding the length of the Encryption Key, we can compile the logic into a function that accepts
text and bytes and returns the length of the Encryption Key as illustrated below
Bruteforce to recover the original text
compute_key_length returns the length of the Encryption Key used to encrypt the plain text. Once we know the length, we can apply Bruteforce with all possible keys of that length and try to decipher the ciphertext. The approach of deciphering will be very similar to how it was done to Decipher single-byte XOR Ciphertext i.e. by using Letter Frequency Distribution and Fitting Quotient to find which key leads to the plain text that is closest to a genuine English sentence.
A test was run on 100 random English sentences with random Encryption keys of varying lengths and it was found that this deciphering technique worked with an accuracy of 99%. Even though the approach is not fool-proof, it does pretty well in eliminating keys that would definitely not result in a correct plain text.
Deciphering a repeated-key XOR Cipher could also be done using Kasiski examination; the method we saw in this essay was Friedman Test using Hamming Distance and Frequency Analysis. The main purpose of this essay was to showcase how seemingly unrelated concepts work together to solve an interesting problem efficiently.
